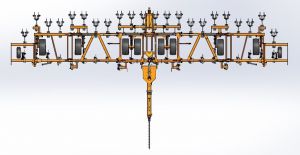

The Elxir66HDXL is a 7-section unit. It features the choice of 8 large 385/65R22.5 tires or 4x385/65R22.5 tires on the center section and 4 x 295/75R22.5 tires on sections 2, 3, 5 & 6. The very outside wings have one each 11L-14 tires inside the frame for depth control.
Tire Choices: Outside Wings: One each 11L-14 tire on section 1 and 7, AND: 8 x 385/65R22.5 in-line tires OR, 4 x 385/65R22.5 center tires plus 4 x 295/75R22.5 in-line tires on
sections 2, 3, 5, & 6.
Front to rear frame stagger is 66” (168 cm)

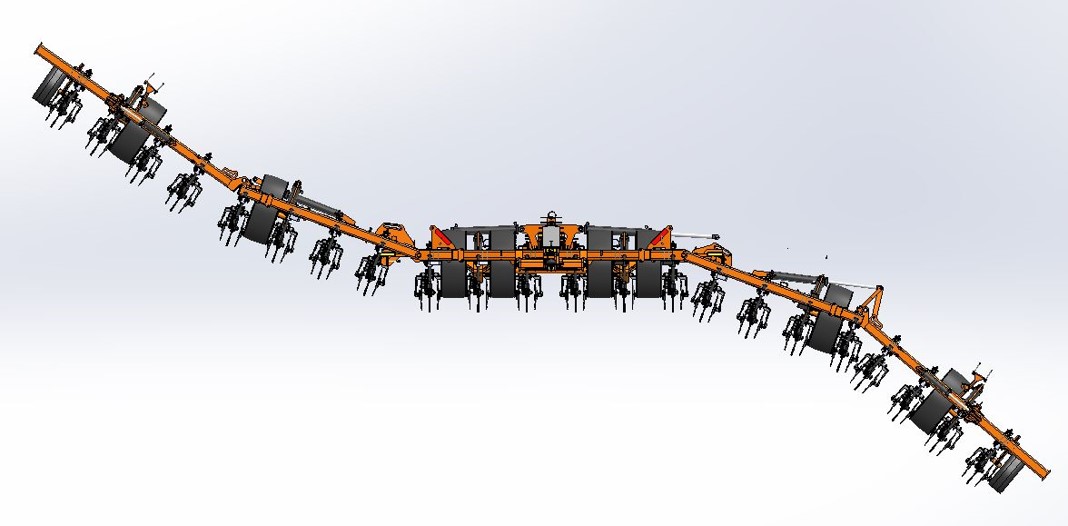

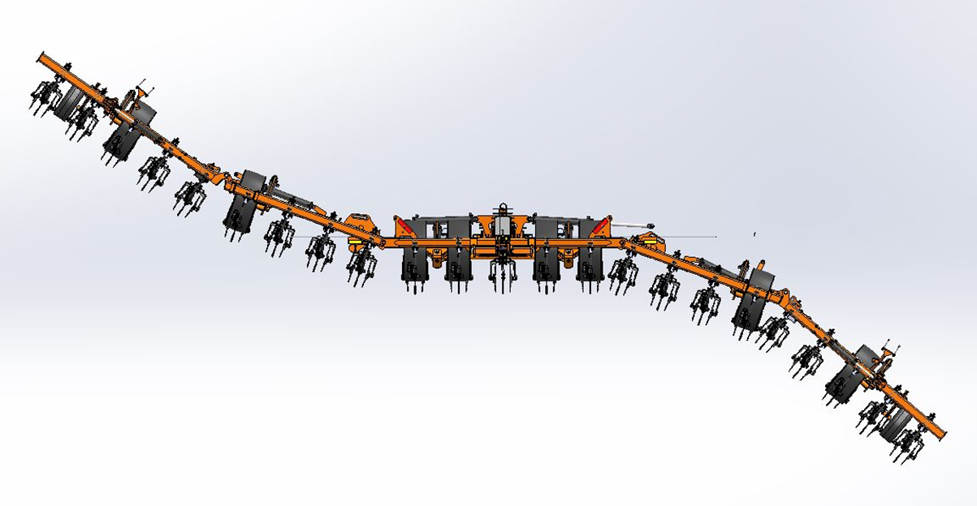

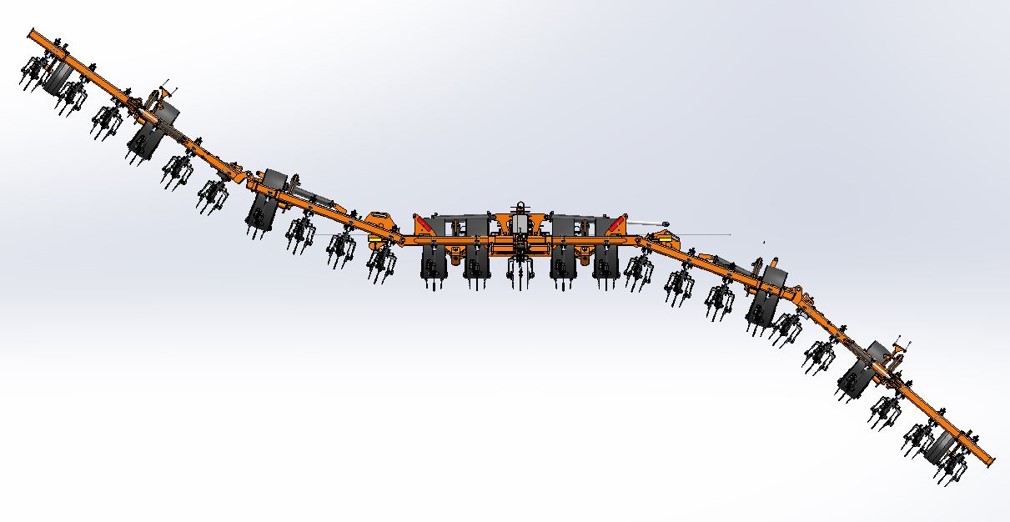

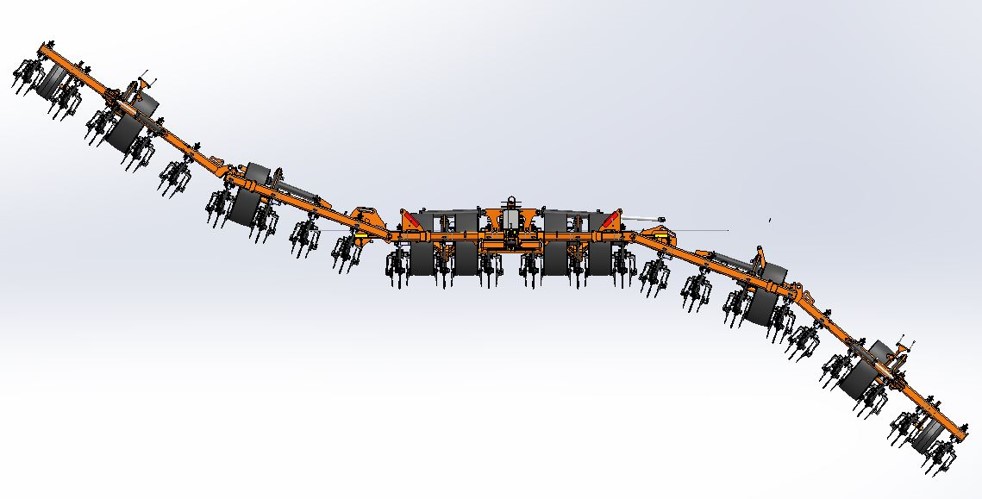

Down-flex inside wing:
20° or 36“ (91 cm)
Down-flex outside wing:
10° or 67" (170 cm)
Up-flex inside wing:
20° or 36“ (91 cm)
Up-flex outside wing:
15° or 77" (196 cm)
Combined up-flex:
113“ (287 cm)
Total down-flex:
103" (262 cm)
The Elxir 66HDXL is available for a number of fertilizer application methods. Please browse our Knivesand Shanks for configurations.

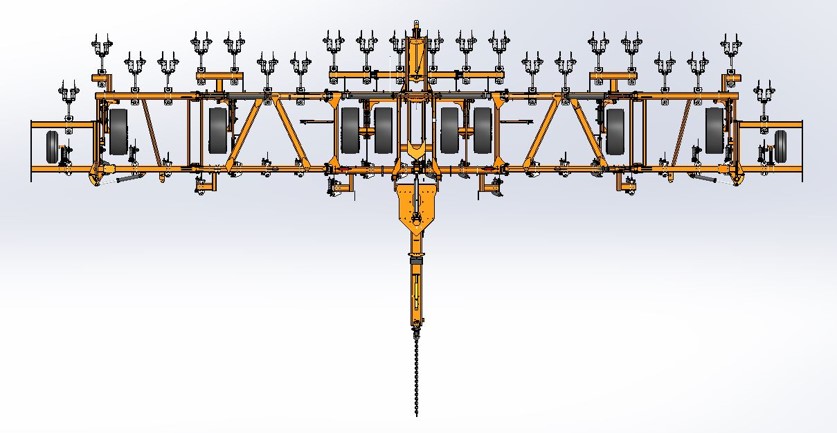

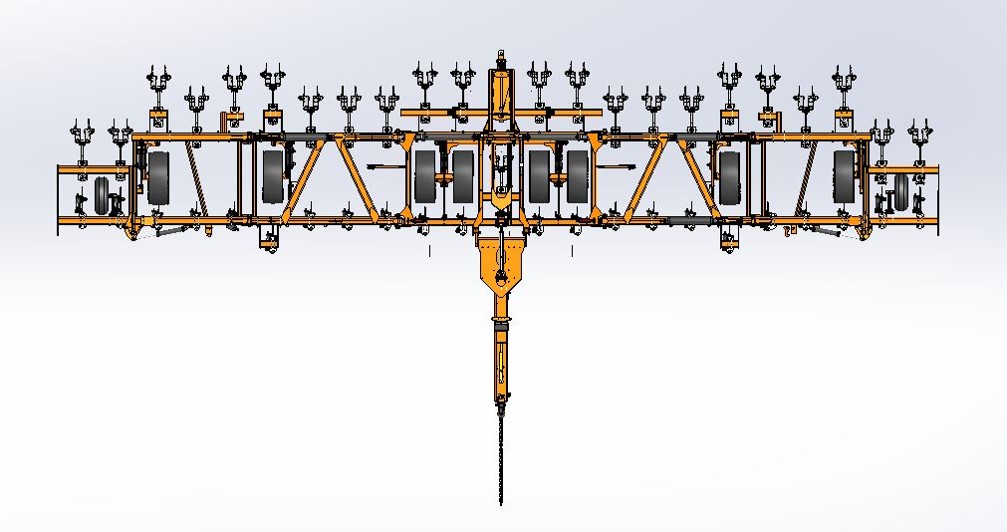

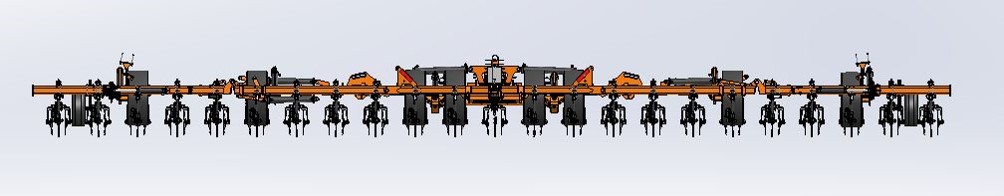

Elxir 66HDXL
23 row @ 30" spacing

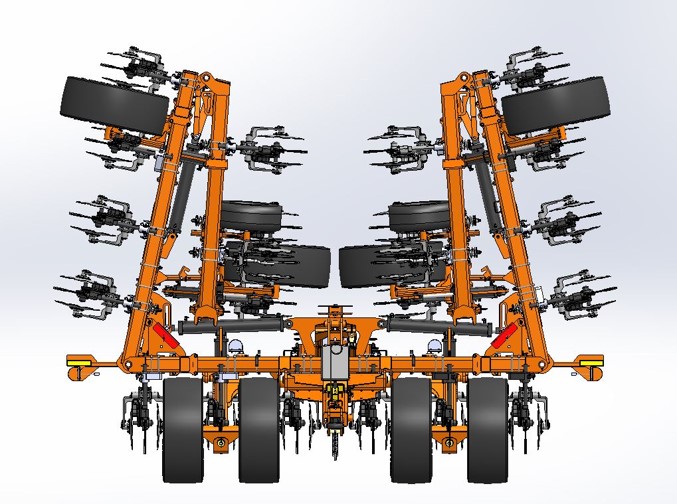

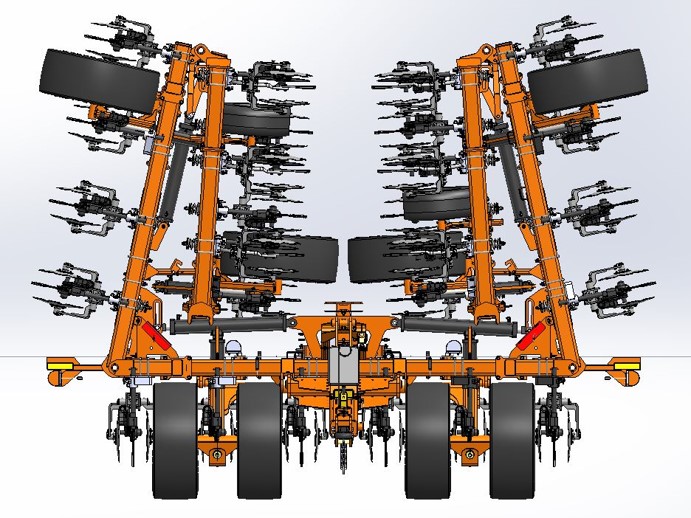

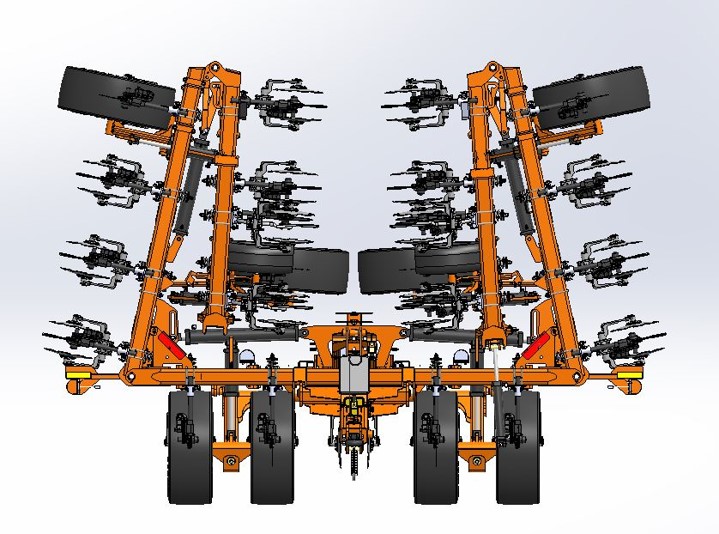

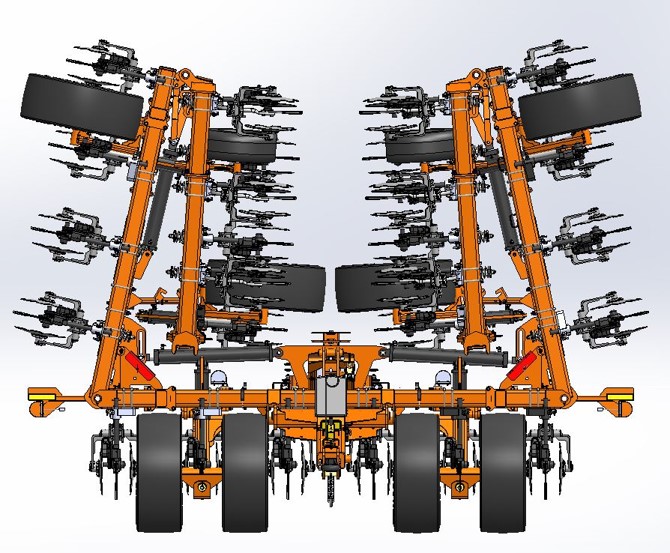

Transport Dimensions Transport Width:
Transport Height:
Transport Clearance:
Transport Tires:
Transport Length:
19' (579 cm)
13'6” (411 cm)
10.75" (27 cm)
4 x 385/65R22.5
24' (732 cm)
Working Depth: 8”-12” (20.3 cm – 30.5 cm)
See row units, shanks and knives for more details
The Elxir66HDXL is a 7-section unit. It features the choice of 8 large 385/65R22.5 tires or 4x385/65R22.5 tires on the center section and 4 x 295/75R22.5 tires on sections 2, 3, 5 & 6. The very outside wings have one each 11L-14 tires inside the frame for depth control.
Tire Choices: Outside Wings: One each 11L-14 tire on section 1 and 7, AND: 8 x 385/65R22.5 in-line tires OR, 4 x 385/65R22.5 center tires plus 4 x 295/75R22.5 in-line tires on
sections 2, 3, 5, & 6.
Front to rear frame stagger is 66” (168 cm)
Down-flex inside wing:
20° or 41“ (104 cm)
Down-flex outside wing:
10° or 69" (175 cm)
Up-flex inside wing:
20° or 41“ (104 cm)
Up-flex outside wing:
15° or 81" (206 cm)
Combined up-flex:
122“ (310 cm)
Total down-flex:
110" (279 cm)
The Elxir 66HDXL is available for a number of fertilizer application methods. Please browse our Knivesand Shanks for configurations.

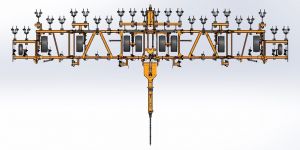

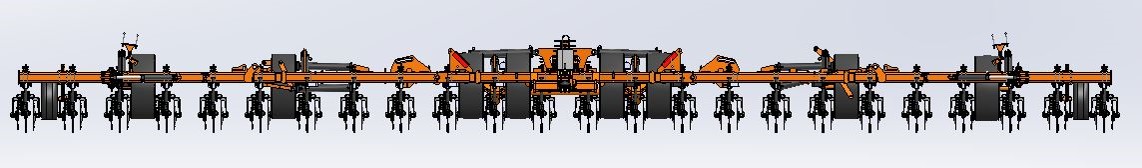

Elxir 66HDXL
24 row @ 30" spacing
Transport Dimensions Transport Width:
Transport Height:
Transport Clearance:
Transport Tires:
Transport Length:
19' (579 cm)
13'6” (411 cm)
10.75" (27 cm)
4 x 385/65R22.5
24' (732 cm)
Working Depth: 8”-12” (20.3 cm – 30.5 cm)
See row units, shanks and knives for more details
The Elxir66HDXL is a 7-section unit. It features the choice of 8 large 385/65R22.5 tires or 4x385/65R22.5 tires on the center section and 4 x 295/75R22.5 tires on sections 2, 3, 5 & 6. The very outside wings have one each 11L-14 tires inside the frame for depth control.
Tire Choices: Outside Wings: One each 11L-14 tire on section 1 and 7, AND: 8 x 385/65R22.5 in-line tires OR, 4 x 385/65R22.5 center tires plus 4 x 295/75R22.5 in-line tires on
sections 2, 3, 5, & 6.
Front to rear frame stagger is 66” (168 cm)
Down-flex inside wing:
20° or 36“ (91 cm)
Down-flex outside wing:
10° or 82" (208 cm)
Up-flex inside wing:
20° or 36“ (91 cm)
Up-flex outside wing:
15° or 94" (239 cm)
Combined up-flex:
130“ (330 cm)
Total down-flex:
118" (300 cm)
The Elxir 66HDXL is available for a number of fertilizer application methods. Please browse our Knivesand Shanks for configurations.

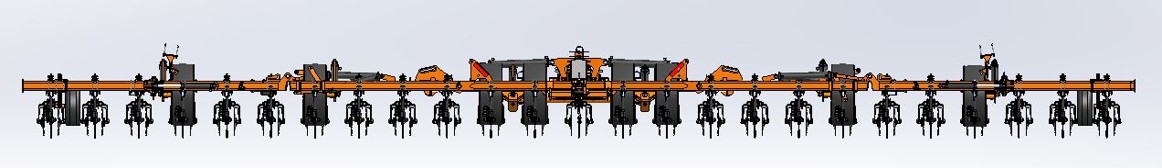

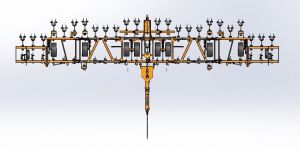

Elxir 66HDXL
25 row @ 30" spacing

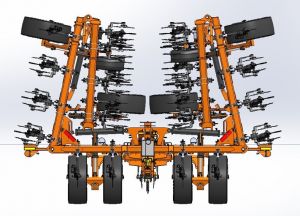

Transport Dimensions Transport Width:
Transport Height:
Transport Clearance:
Transport Tires:
Transport Length:
19' (579 cm)
13'6” (411 cm)
10.75" (27 cm)
4 x 385/65R22.5
24' (732 cm)
Working Depth: 8”-12” (20.3 cm – 30.5 cm)
See row units, shanks and knives for more details
The Elxir66HDXL is a 7-section unit. It features the choice of 8 large 385/65R22.5 tires or 4x385/65R22.5 tires on the center section and 4 x 295/75R22.5 tires on sections 2, 3, 5 & 6. The very outside wings have one each 11L-14 tires inside the frame for depth control.
Tire Choices: Outside Wings: One each 11L-14 tire on section 1 and 7, AND: 8 x 385/65R22.5 in-line tires OR, 4 x 385/65R22.5 center tires plus 4 x 295/75R22.5 in-line tires on
sections 2, 3, 5, & 6.
Front to rear frame stagger is 66” (168 cm)
Down-flex inside wing:
20° or 41“ (104 cm)
Down-flex outside wing:
10° or 84" (213 cm)
Up-flex inside wing:
20° or 41“ (104 cm)
Up-flex outside wing:
15° or 98" (249 cm)
Combined up-flex:
139“ (353 cm)
Total down-flex:
125" (318 cm)
The Elxir 66HDXL is available for a number of fertilizer application methods. Please browse our Knivesand Shanks for configurations.

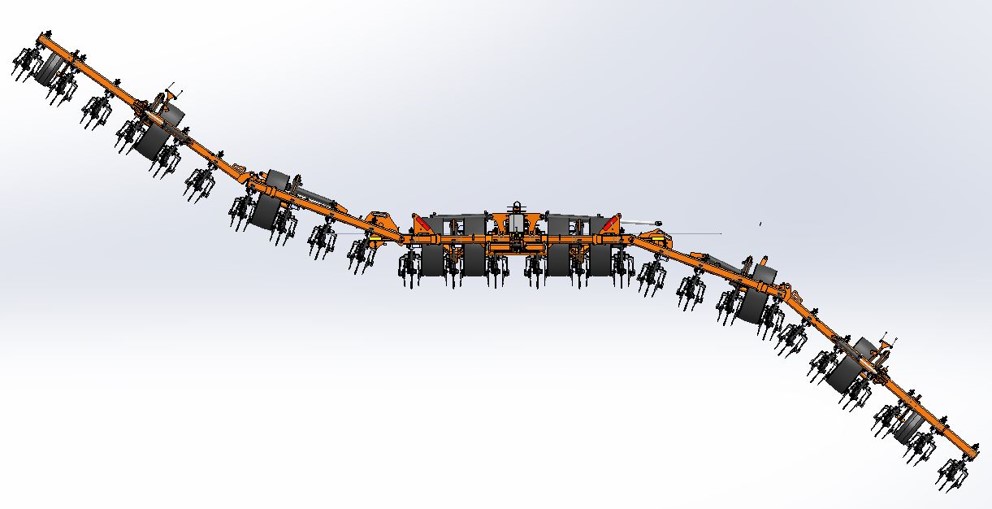

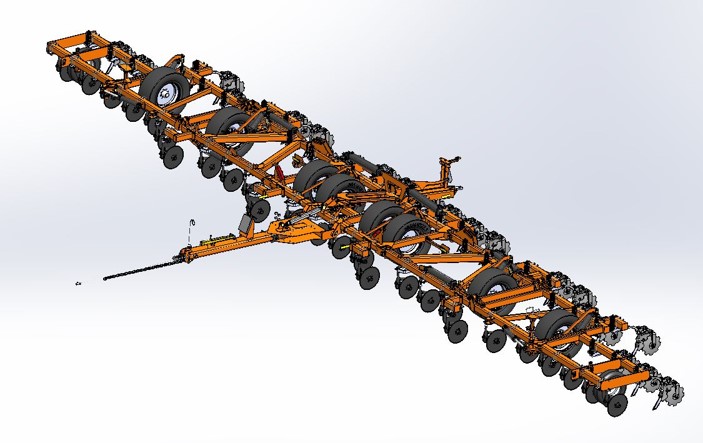

Elxir 66HDXL
26 row @ 30" spacing
Transport Dimensions Transport Width:
Transport Height:
Transport Clearance:
Transport Tires:
Transport Length:
19' (579 cm)
13'6” (411 cm)
10.75" (27 cm)
4 x 385/65R22.5
24' (732 cm)
Working Depth: 8”-12” (20.3 cm – 30.5 cm)
See row units, shanks and knives for more details
The Elxir66HDXL is a 7-section unit. It features the choice of 8 large 385/65R22.5 tires or 4x385/65R22.5 tires on the center section and 4 x 295/75R22.5 tires on sections 2, 3, 5 & 6. The very outside wings have one each 11L-14 tires inside the frame for depth control.
Tire Choices: Outside Wings: One each 11L-14 tire on section 1 and 7, AND: 8 x 385/65R22.5 in-line tires OR, 4 x 385/65R22.5 center tires plus 4 x 295/75R22.5 in-line tires on
sections 2, 3, 5, & 6.
Front to rear frame stagger is 66” (168 cm)
Down-flex inside wing:
20° or 36“ (91 cm)
Down-flex outside wing:
10° or 97" (246 cm)
Up-flex inside wing:
20° or 36“ (91 cm)
Up-flex outside wing:
15° or 112" (284 cm)
Combined up-flex:
148“ (375 cm)
Total down-flex:
148" (375 cm)
The Elxir 66HDXL is available for a number of fertilizer application methods. Please browse our Knivesand Shanks for configurations.
